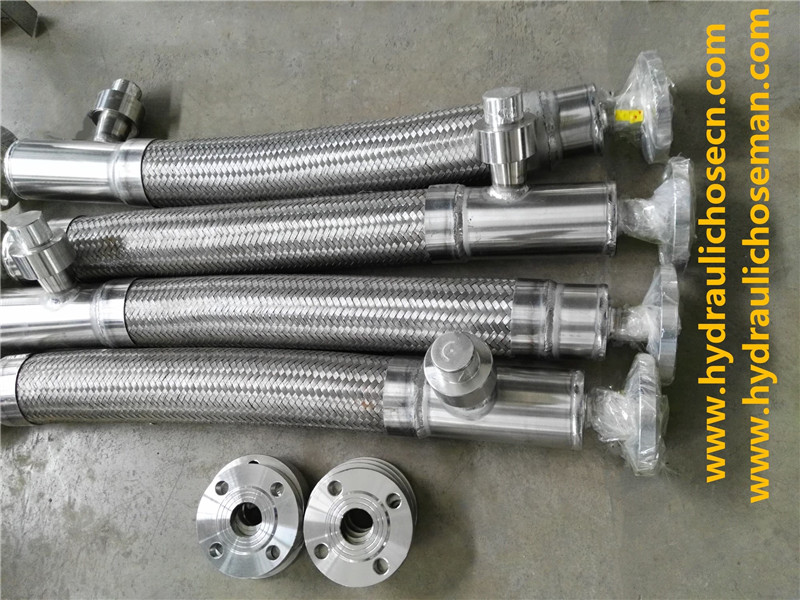

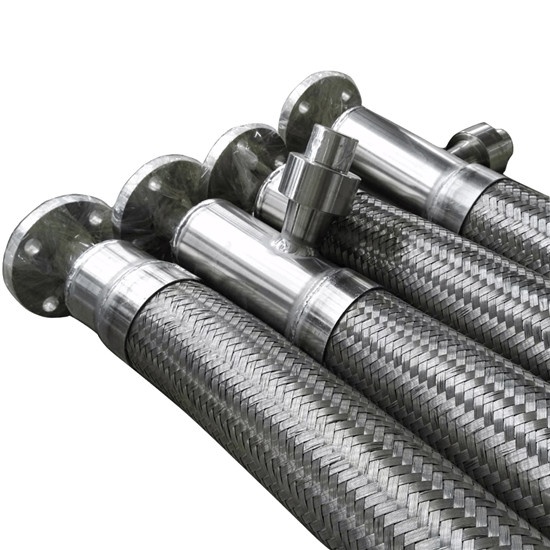

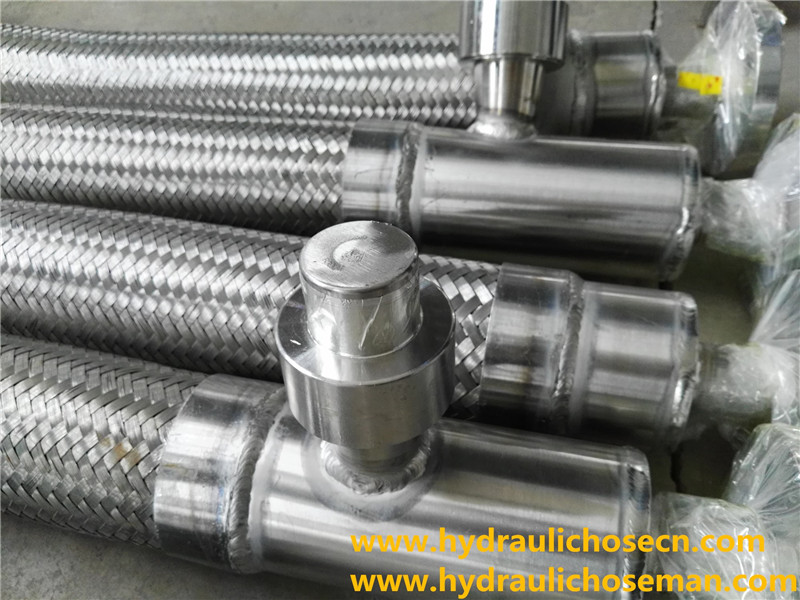

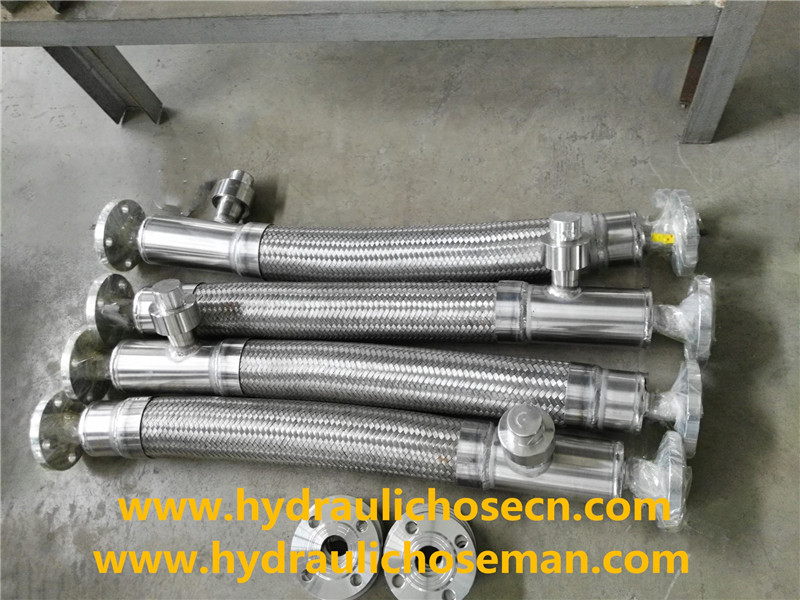

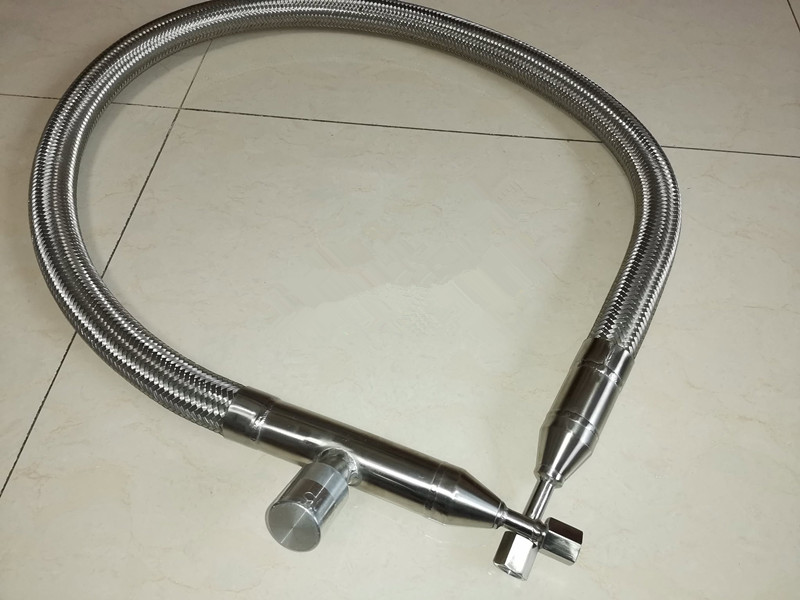

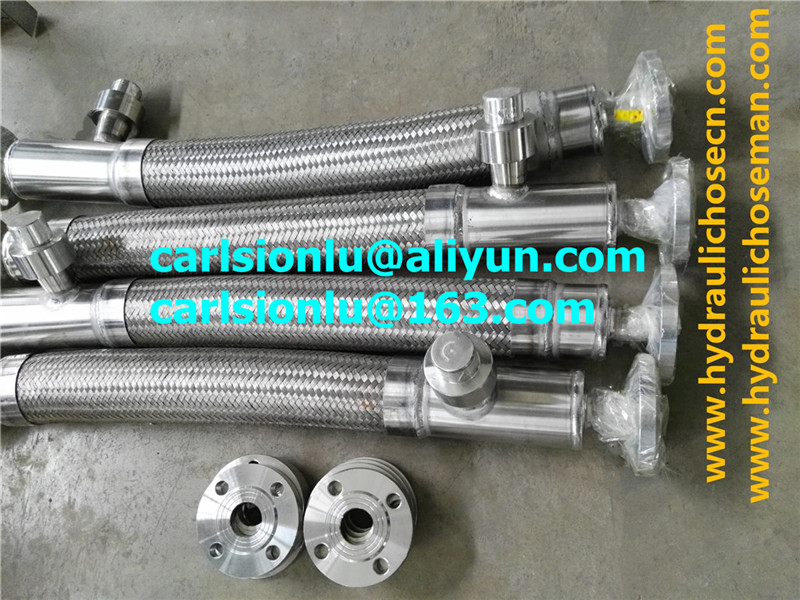

Vacuum insulate stainless steel hose




Vacuum insulate hose is mainly applied to: low temperature tank filling and unloading process;
Connection transformation between low temperature storage tank and cryogenic liquid equipment;
Conversion between low temperature vacuum pipe and cryogenic liquid equipment;
Other places with special technology and process requirements.

Characteristics:

Characteristics of high vacuum multiple layer adiabatic low temperature hose:

Using the special customized double layer stainless steel metal hose, sandwich special multiple layer insulation composite material and keep high vacuum, cooling effect is good, in the process of using the hose outside surface is not sweating, no frosting;

• support between internal and external tubes with minimal thermal conductivity

Small bending radius, easy to use, the length can be customized according to the requirements of the user.



• it can be connected to a vacuum pipe.

In order to reduce the loss of vaporization, the two ends of the vacuum hose can be connected to the flange or the tank and the special quick fitting joint of the tank car.

Special required vacuum hose can be customized

Specifications:

Specifications and main technical parameters of low temperature vacuum hose & pipes
SIZE（mm)	DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100
INNER TUBE（mm)	Φ15	Φ20	Φ25	Φ32	Φ40	Φ50	Φ65	Φ80	Φ100
OUT TUBE（mm)	Φ50	Φ65	Φ65	Φ65	Φ80	Φ100	Φ125	Φ150	Φ168
Leakage of heat W/m	0.99	0.53	0.63	0.76	0.9	1.01	1.3	1.59	1.93
Working pressure	≤20MPa Design according to the actual requirements of the user
Design temperature	-270℃
Conveying medium	LNG、LO2、LN2、LAr、LH2、LHe
Leakage rate of vacuum inter-layer  Pa·m3/s	≤1X10-10
Leakage speed  of vacuum inter-layer Pa·m3/s	≤1X10-8
Vacuum degree of sealing  Pa	≤5X10-2
Vacuum degree at liquid nitrogen temperature Pa	≤5X10-3
ambient temperature	-40℃~60℃
Opening pressure of inter-layer safety device	0.6MPa
design basis	Related national standards and Q/NQS007-2010 "low temperature adiabatic tube"
