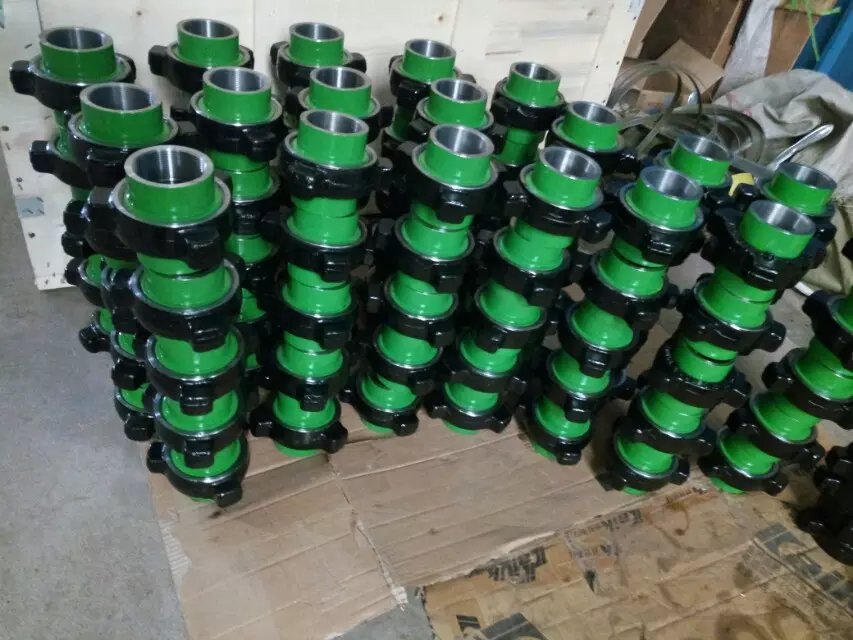

Hammer Union Fig 206 - 2,000 PSI CWP, Forged
Fig 206 is the medium-pressure workhorse of the hammer union range. Rated at 2,000 PSI CWP, it is the most common union on oilfield service lines, mud and water systems, cementing support lines and general transfer duties. It is normally supplied with threaded ends, which keeps it quick to install on existing pipework. The body is forged for strength where it matters - at the hub and the pressure shoulder.

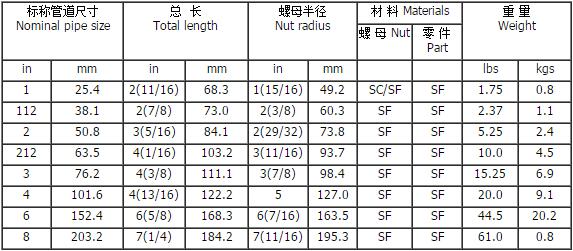

Specifications
- Working pressure: 2,000 PSI CWP
- Sizes: 2" to 4" (other sizes on request)
- End connection: threaded (NPT or API line pipe) or butt-weld
- Material: forged carbon steel; NACE MR0175 (sour service) on request
- Seals: Buna-N (NBR) standard; HNBR / PTFE for higher temperature or chemical media
- Service: oilfield service lines, mud, water, cementing support, transfer duties
What to send with an enquiry
Figure number, size, end connection, medium and working pressure, and quantity. Material certificates and batch test reports are provided with the order, and third-party inspection (SGS / BV / TUV) can be arranged before shipment.
Fig 206 is one figure inside our full range from Fig 100 through Fig 1502 (1,000-15,000 PSI CWP). If your line condition sits between two figures, send us the pressure and medium and we will confirm the right figure before production.
