Rubber Expansion Joints / Rubber Expansion Bellow
Rubber Expansion Joint — Single & Double Sphere, DN25–DN1200

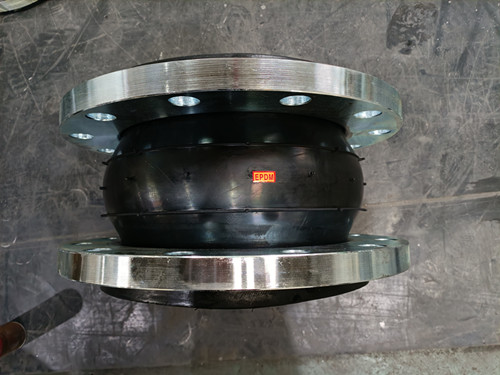

Rubber expansion joints absorb vibration, noise and pipeline movement between pumps, valves, tanks and pipework. Zhongsong supplies single sphere and double sphere rubber joints with flanged ends in GB/T, DIN, ANSI, JIS and BS drilling, in EPDM, NBR, Neoprene and Hypalon, with PTFE-lined options for aggressive media.
Typical applications: water treatment and pumping stations, HVAC and district heating, marine and shipbuilding, chemical and power plants, and general industrial pipelines.
Specifications

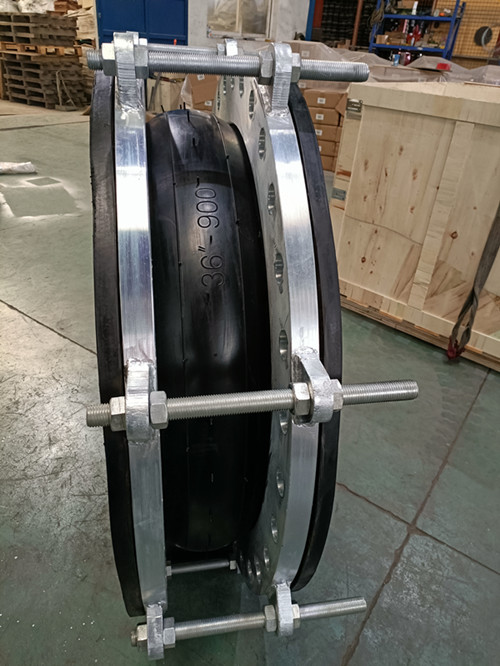

• Type: single sphere / double sphere; with or without control rods and limiting bolts
• Size: DN25–DN1200 (1"–48") • Flange standard: GB/T, DIN, ANSI, JIS, BS; flat face or raised face
• Rubber: EPDM, NBR, Neoprene, Hypalon; PTFE-lined available
• Working pressure: 10 bar / 16 bar (higher on request)
• Temperature: −20 °C to +120 °C (material dependent)
• Movement: axial, lateral and angular
• Media: water, hot water, sea water, air, weak acid and alkali solutions
How to specify
Tell us: nominal size (DN), flange standard and drilling, medium and temperature, working pressure, movement expected (axial / lateral / angular) and quantity. We will confirm the drawing and quote within 24 hours on working days.
Quality and testing
Batch test reports are provided with each shipment. Third-party inspection (SGS / BV / TÜV) can be arranged at the factory before shipment; pre-shipment photos and videos are sent for confirmation.
Why buyers work with us
Custom sizes, OEM branding and neutral packing are available. Long flanged assemblies are braced and packed to avoid deformation in sea freight.
