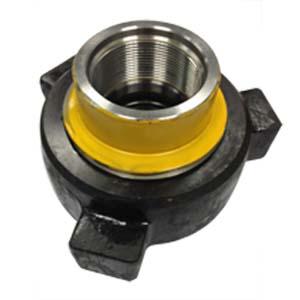

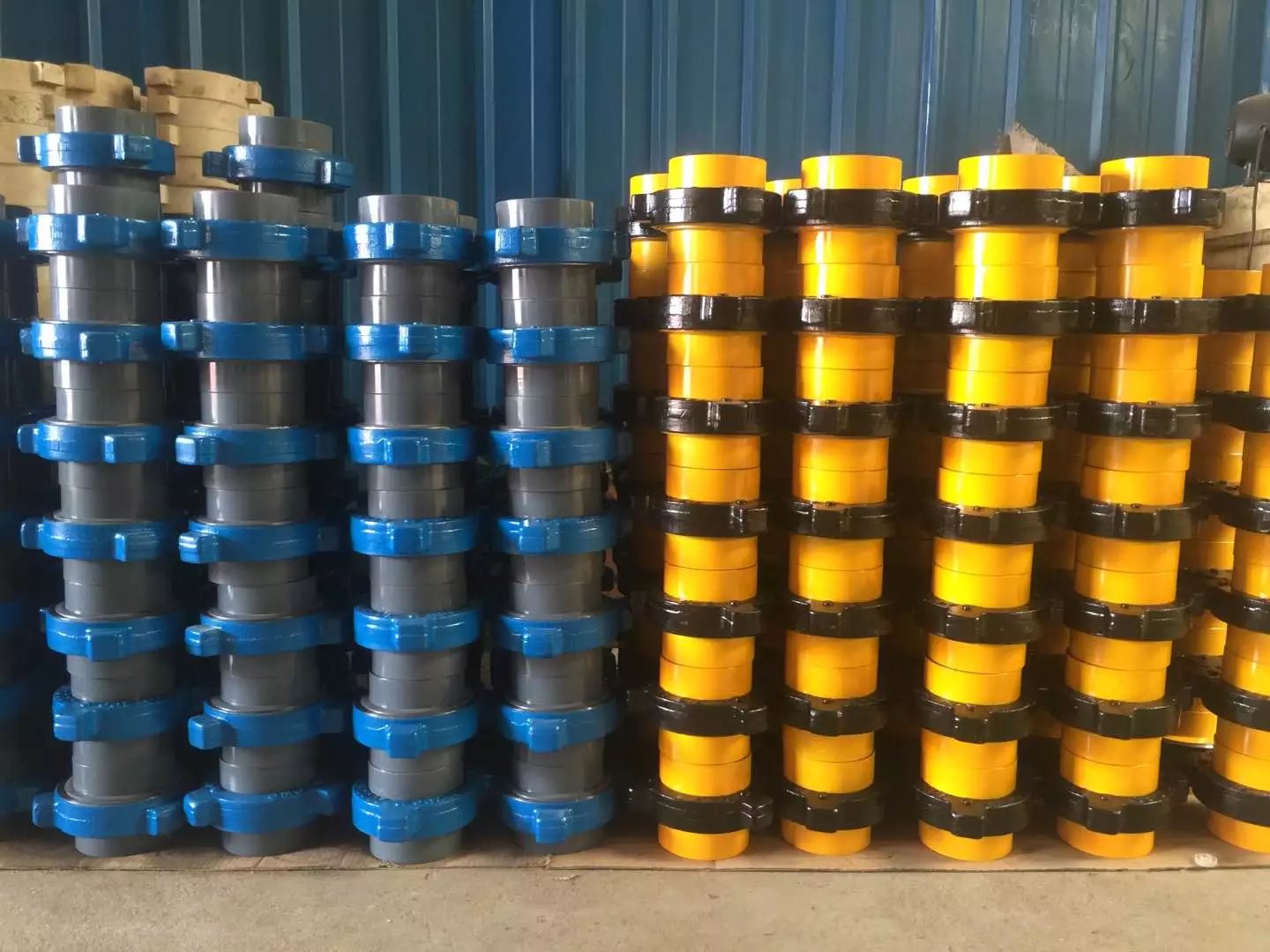

Hammer Union Fig 100 — 1,000 PSI CWP, Forged
Fig 100 is the entry figure of the hammer union range, rated at 1,000 PSI CWP. It is the economical choice for low-pressure duties: water transfer lines, air lines, mud transfer and wash-down service, where the line pressure is modest but the connection still has to be made up and broken quickly on site. The body is forged, so the pressure-bearing sections keep their strength after years of repeated make-up and break-out.

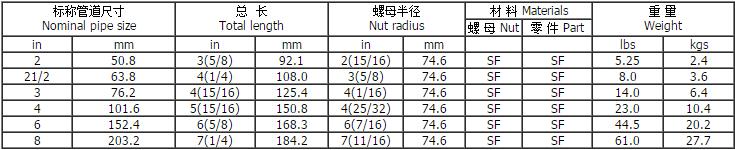

Specifications
- Working pressure: 1,000 PSI CWP
- Sizes: 2" to 4" (other sizes on request)
- End connection: threaded (NPT or API line pipe)
- Material: forged carbon steel; NACE MR0175 (sour service) on request
- Seals: Buna-N (NBR) standard; HNBR / PTFE for higher temperature or chemical media
- Service: water transfer, air lines, mud transfer, general low-pressure duties
What to send with an enquiry
Figure number, size, end connection, medium and working pressure, and quantity. Material certificates and batch test reports are provided with the order, and third-party inspection (SGS / BV / TÜV) can be arranged before shipment.
Fig 100 is one figure inside our full range from Fig 100 through Fig 1502 (1,000–15,000 PSI CWP). If your line condition sits between two figures, send us the pressure and medium and we will confirm the right figure before production.
