Hammer Union Fig 1502 - 15,000 PSI CWP, Forged
Fig 1502 is the high-pressure standard of the hammer union range: 15,000 PSI CWP working pressure, tested well above rating, and the default figure on fracturing lines, wellhead connections and high-pressure manifolds. It is supplied mostly in 2 inch and 3 inch, usually with butt-weld ends and a wing nut for fast make-up on site. The body is forged - at this pressure level the difference between forged and lesser constructions shows up first at the threads and the seal shoulder.

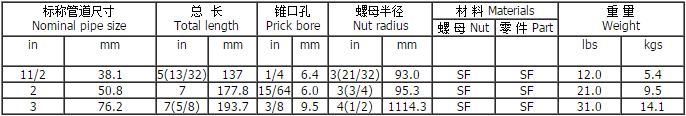

Specifications
- Working pressure: 15,000 PSI CWP, tested above rating
- Sizes: 2" and 3" standard (other sizes on request)
- End connection: butt-weld standard; threaded on request
- Material: forged alloy steel; NACE MR0175 (sour service) on request
- Seals: selected to medium and temperature - HNBR / PTFE at this pressure level
- Service: fracturing lines, wellhead connections, high-pressure manifolds
What to send with an enquiry
Figure number, size, end connection, medium and working pressure, and quantity. Material certificates and batch test reports are provided with the order, and third-party inspection (SGS / BV / TUV) can be arranged before shipment.
Fig 1502 is one figure inside our full range from Fig 100 through Fig 1502 (1,000-15,000 PSI CWP). If your line condition sits between two figures, send us the pressure and medium and we will confirm the right figure before production.
